Tamiya 58706 - Thunder Shot 2022 Re-Released 1/10 4WD Kit

Art.nr: 58706-60A

2.249,-

Du vil motta en e-post så snart produktet er på lager!

En ukjent feil har oppstått. Prøve igjen

TAMIYA

1 På lager

Informasjon
Produsent

Tamiya 58706 - Thunder Shot 2022 Re-Released 1/10 4WD Kit

Svært tiltalende re-realeaset modell fra Tamiya

Dette byggesettet er en gjenutgitt og oppdatert versjon av Thunder Shot, hvor originalen først ble utgitt i 1987. Den har ett stilig karosseri støpt i polykarbonat, som er ferdigkuttet og ferdigmalt i hvitt og blå, med en gjennomsiktig canopy. En valgfri bakvinge er også inkludert for å la deg finjustere Thunder Shot (2022), også ferdigmalt og ferdigkuttet.

Akseldrevet 4WD

Med et motoroppsett midtskips og akseldrevet 4WD-oppsett, er chassiset basert rundt en lett og stiv ABS-plastramme som oppbevarer R/C-utstyr internt og har girkasseenheter med intern differensial foran og bak som har fjæringen festet til seg. Den firehjuls doble bærearmsfjæringen har øvre "I" og nedre "H"-armer og har en enkelt CVA-oljedemper foran, med et par dempere bak, pluss en frontstabilisator: Resultatet er en jevn, flytende kjøring. Andre viktige funksjoner inkluderer et motorfeste i aluminium, pluss grippy piggdekk på alle fire hjul.

Option :

17stk x 1150 (5x11x4mm Kulelager)
4 stk x 850 (5x8x2.5mm Kulelager)

Nødvendig tilbehør:

Radio/motaker
Regulator (ESC) Vi kan anbefale HW Quicrun 1060
Drivbatteri (rundkasse) og Lader til dette

Thunder Shot (2022)
Item No: 58706

Length: 390mm. Image shows painted and assembled kit.

Highly Appealing
This R/C model assembly kit is a re-released and updated version of Thunder Shot, the original of which was first released in 1987. It features a stylish body molded in polycarbonate, which is pre-cut and pre-painted in white and blue, with a transparent canopy. An optional rear wing is also included to let you fine-tune the Thunder Shot (2022), also pre-painted and pre-cut.

Smooth Shaft-Driven 4WD

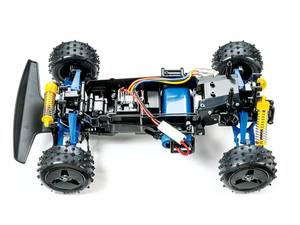

With a midship motor layout and shaft-driven 4WD setup, the chassis is based around a lightweight and rigid ABS plastic frame that stows R/C equipment internally and features gearbox units with internal differential front and rear that have the suspension attached to them. That four-wheel double wishbone suspension features upper "I" and lower "H" arms and packs a single CVA oil damper at the front, with a pair at the rear, plus a front stabilizer: the result is a smooth, flowing drive. Other features of note include an aluminum motor mount, plus grippy spike tires on all four corners.

★The compact, futuristic body is molded in lightweight and durable polycarbonate.

★Sturdy and easy to work on, the chassis has an ergonomic design based around an ABS bathtub.

★The front double-wishbone suspension employs upper "I" and lower "H" arms.

★A front monoshock setup sees the CVA oil damper laid on its side. The stabilizer helps supress roll.

★An aluminum motor mount not only keeps the motor securely attached, it also acts as a heat sink.

★The rear of the chassis also uses double-wishbone suspension, with a pair of CVA oil dampers.

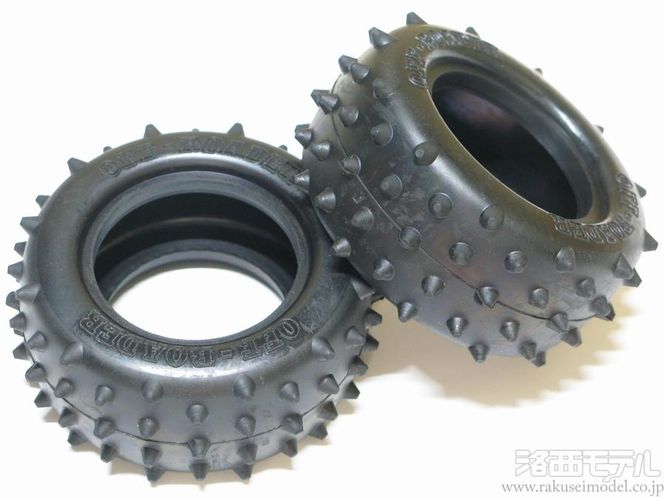

★One-piece dish wheels will attract less mud, and are paired with semi-pneumatic spike tires.

★A polycarbonate cover helps minimize debris getting into the chassis, and even features a driver figure!

★A separate rear wing is also included for optional attachment to the Thunder Shot (2022).

Specifications
★Length: 390mm, width: 240mm, height: 135mm ★Wheelbase: 260mm ★Ground clearance: 23mm ★Tread: 203mm (front), 194mm (rear) ★Tire width/diameter: 38/83mm (front/rear) ★Bathtub type frame ★Shaft-driven 4WD ★Front/rear 3-bevel differentials ★3-piece steering tie-rod ★Front/rear independent double wishbone suspension ★Gear ratio = 7.68:1 ★Type 540 motor ★Electronic speed controller (ESC) is sold separately.

Separately Required Items
★2-channel R/C system w/ESC ★R6/AA/UM3 batteries for transmitter ★Battery pack & charger

Information is current as of April 21, 2022. Specifications are subject to change without notice.
