Tamiya 56360 1/14 VOLVO FH16 Globetrotter 750 6x4 Timber
Ulakkert Byggesett fra Tamiya, nødvendig tilbehør:
Vi anbefaler Beier Lydmodul og Servonaut Motor 7.2V eller 12V du kan da fjerne girservo da servonaut eliminerer behov for girveksler.
Radio og Motaker her er det noen å velge i, men du bør ha min 6CH
Carson 14 kanals radio er en god startradio, denne er enkel og inkluderer 14 ch motaker og er klargjort for Tamiya sine MFC og kan også fåes som Digital 14 kanals radio, begge Carsonradioene er rimelige og gode radioer for Tamiya lastebilene.
Lader er ett utall å velge mellom, velg en Computerlader som tar det meste, en E680 er ett veldig fornuftig valg
| TIMBERRRRR!! Volvo is a renowned actor in the global commercial vehicle market, with one of their flagship brands being the FH Series that underwent a full model change in 2012. This R/C model assembly kit recreates the 750hp 16.1-liter turbocharged inline-6 engine FH16 Globetrotter 750 6x4 timber truck from that range. The model has a realistic body, and a chassis featuring numerous metal parts. Gear changes are also possible via transmitter controls. ★Ladder frame features aluminum side channels with resin cross members. ★Depictions of stakes and cab rear headboard use a durable combination of resin and metal. ★Power from the front-mounted motor is delivered to rear axles via propeller shaft. A built-in differential gear on each axle enables smooth cornering. ★Highly-realistic suspension utilizes metal leaf springs and friction dampers. The model enjoys easy driving thanks to the float-mounted die-cast front and reinforced resin rear axles. ★The highly accurate body captures the FH16 Globetrotter form, with stainless steel photo-etched front grille, and cab interior details. ★TR Mighty Tuned motor (35T) provides plenty of power, even when driving with loads. |

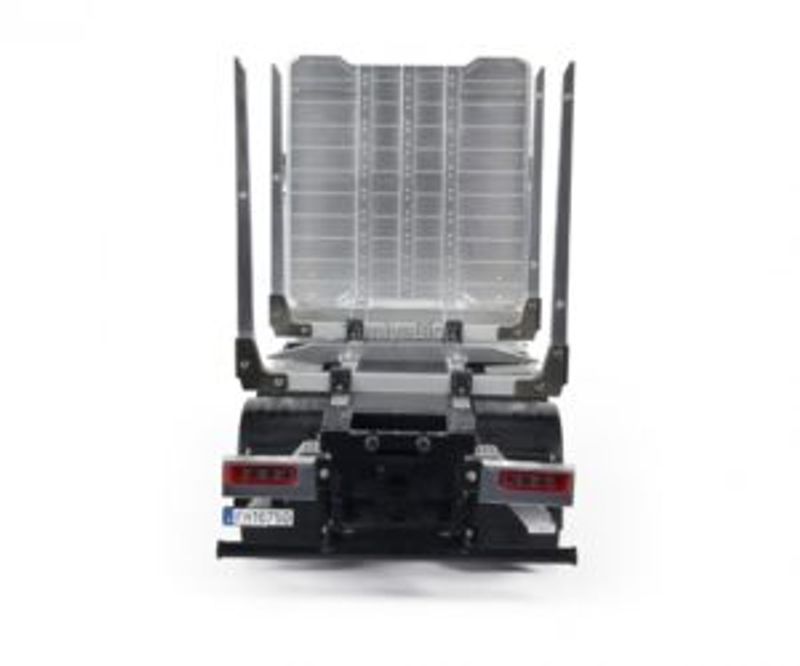

 ★This view shows off the brand new timber bed design, complete with stakes to keep the lumber load intact. |
 |
 ★Optional on the actual truck, the roof lamps give a realistic look, with horn, antennae and more. |
|
 ★The distinctive side mirrors are recreated faithfully, by metal-plated parts for an authentic finish. |

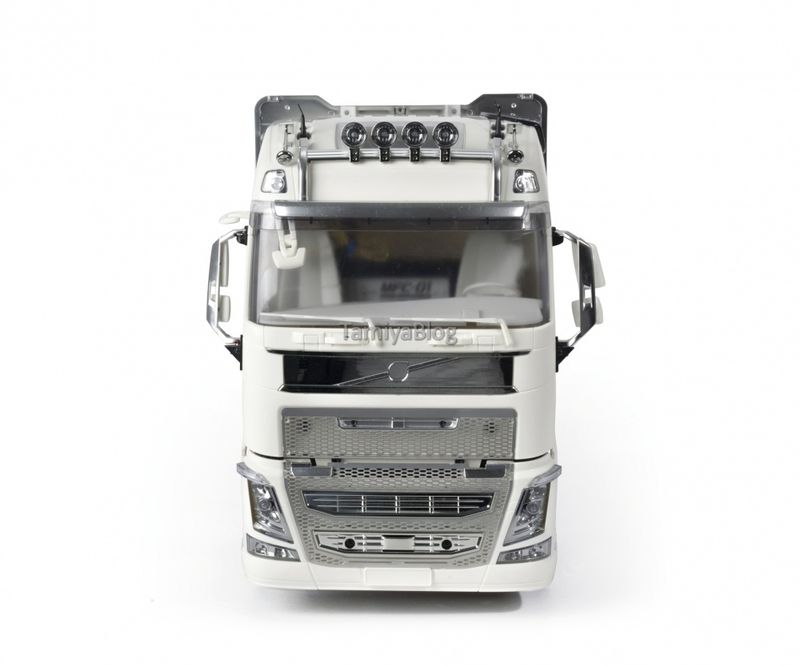

 ★Here is a close-up of the photo-etched parts, which adorn the finely molded depiction of the cab. |
|
 ★3-speed transmission allows gear changes on the move when used with a separately-sold 4ch transmitter. |
|
 ★Rear trunnion type suspension mimics that of full size trucks. The friction damper has a metal cylinder. |
 ★A close-up of the dual rear tires, which are given realistic tread pattern for plenty of grip. |
|
 ★There is plenty of detail, highlighted here by side guards, tank shield and sanding gear depictions. |
|
 ★Metal-plated resin headboard and resin stake components secure durability and superb realism. |
 ★We haven't forgotten the details - the rear steps are recreated by resin parts with a plated finish. |
|
 ★Why not use the separately sold MFC-03 unit to light up components such as the square taillights? |
|
 ★Chains and lever block parts are also included in this comprehensive kit, for display purposes. |
 ★Fitting the separately sold MFC-03 unit will also allow lighting up of headlights, fog lamps and more. |
|

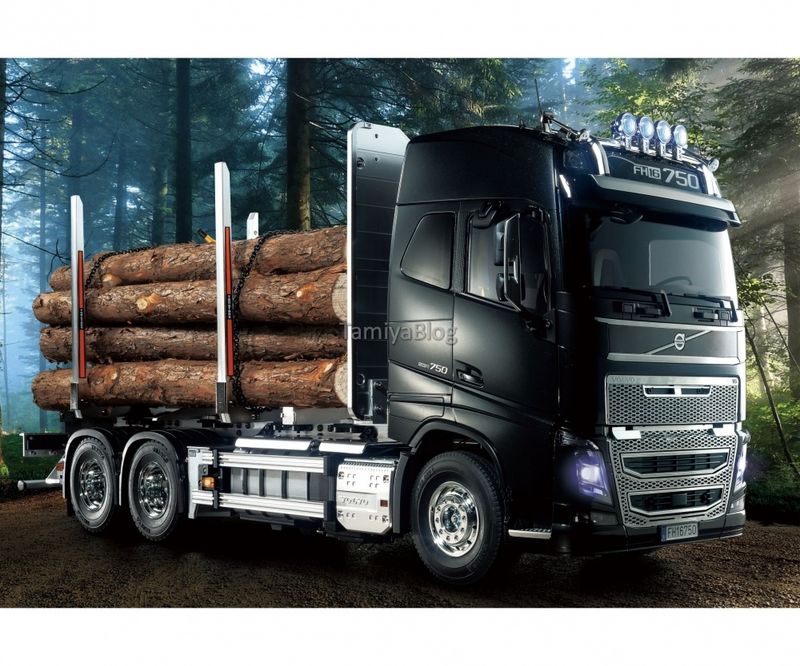

 ★Why not load up your timber truck with some realistic papercraft lumber - templates below! (*logs in image are not papercraft) |
Benytt TS lakk fra Tamiya så får du best resultat.

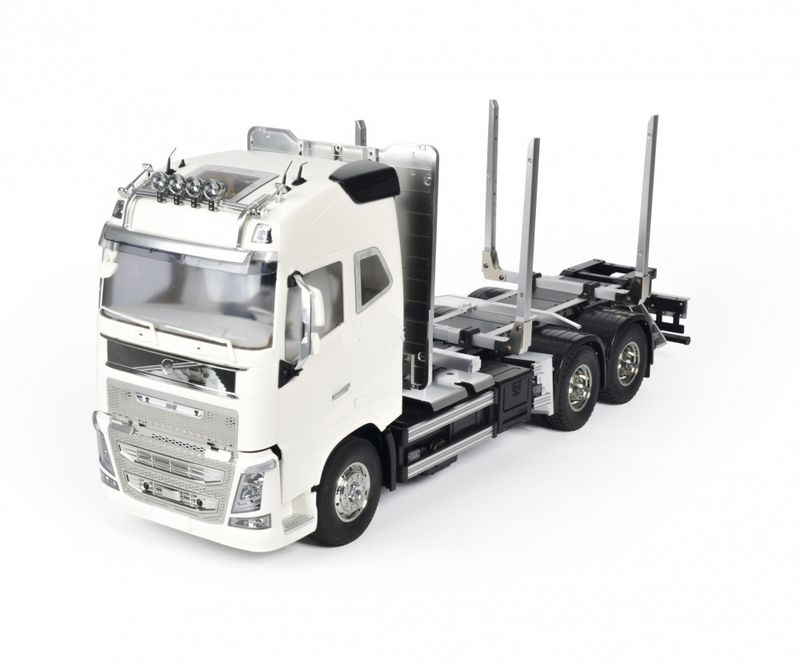

This is a TAMIYA 1/14 scale R/C semi-truck assembly kit model of a timber truck with long rear bed featuring a distinctive frame and stakes for carrying logs. The model itself depicts the Volvo FH16 Globetrotter, a 750hp 16.1-liter turbocharged engine powered truck from the Swedish company’s flagship FH Series that underwent a full model change in 2012.
• 1/14 scale R/C tractor truck model assembly kit.
• ABS plastic body captures the FH16 Globetrotter form, with stainless steel photo-etched front grille, and cab interior details.
• Depictions of stakes and cab rear headboard use a durable combination of resin and metal.
• Assembly type 3-speed transmission allows gear changes via separately sold 4-channel transmitter.
• Ladder frame features aluminum side channels with plastic cross members.
• Power from the front-mounted motor is delivered to rear axles via propeller shaft. A built-in differential gear on each axle enables smooth cornering.
• Highly-realistic suspension utilizes metal leaf springs and friction dampers. The model enjoys easy driving thanks to the float-mounted die-cast front and reinforced resin rear axles.
• TR Mighty Tuned motor (35T) provides plenty of power, even when driving with loads.
• Printable templates for the creation of paper craft logs available for download!
• LED cables in Multi-Function Control (MFC) units are not compatible with this model. You will need to purchase separately available longer-cabled LEDs (Items 56549-56551) if using MFCs.
• Compatible option parts (TROP) include Items 56523, 56531, 56532, 56538 and 56548.
• Requires: 4-Channel radio, One Servo, ESC, 7.2volt battery with compatible charger, and Tamiya TS-Paint.
| Specifications ●Length: 733mm, Width: 194mm, Height: 306mm, Weight (with R/C equipment and battery pack): Approx. 4.35kg ●Wheelbase: 363＋103mm ●Tread: 155mm (Front), 138mm (Rear, Double Tire) ●Chassis: Aluminum & Polycarbonate Resin Ladder Frame ●Suspension: Front/Rear Leaf Springs ●Caster Angle: 0° (Front & Rear) ●Camber Angle: 0° (Front & Rear) ●Toe Angle: 0° (Front & Rear) ●Dampers: Aluminum Dummy Dampers (Front & Rear) ●Drivetrain: Rear Double Axle Drive ●Transmission: 3-gear transmission (shifts operated via transmitter) ●Gear Ratio: (1st Gear) 32.49:1, (2nd Gear) 17.76:1, (3rd Gear) 10.66:1 ●Diff. Gear: 3-bevel differentials ●Motor: Type 540 ●Tire Width/Diameter: 30mm/85mm (Front), 22mm/84mm (Rear) |
| Separately Required Items ★4-Channel R/C System w/slide trim levers and self-neutral sticks ★Servos x2 ★ESC or Multi-Function Control (MFC) Unit ★R6/AA/UM3 batteries for transmitter ★Battery Pack & Charger |
| Realistic Lights, Sounds, and Vibration Tamiya Multi-Function Control Units (sold separately) offer light, sound, and vibration operation to accompany your R/C truck experience. Engine sounds have been digitally recorded from actual trucks, and together with air horn, gear shifting, and many other realistic sounds, give you the feeling that you are driving the real thing! Headlights, brake lights, fog lamp, hazard lights and turn signal operations are also at your fingertips. |
Information is current as of April 16, 2019. Specifications are subject to change without notice.
