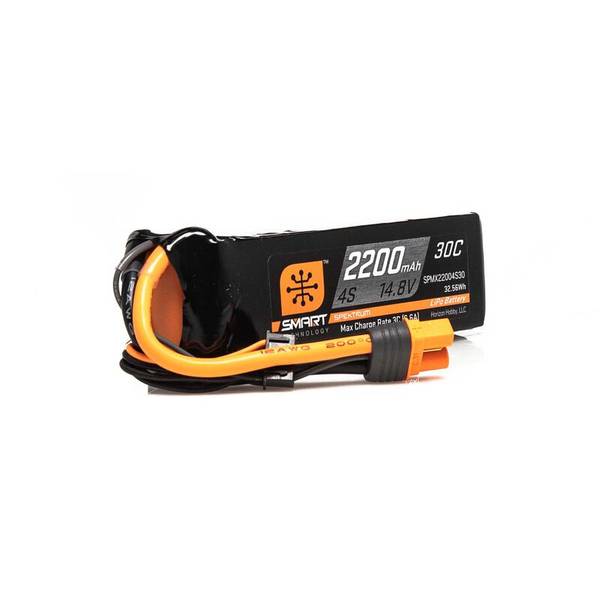

4S 2200mAh - 30C - Spektrum Smart Lipo Batteri iC3

Art.nr: SPMX22004S30

459,- ~~559,-~~ -18%

Du vil motta en e-post så snart produktet er på lager!

En ukjent feil har oppstått. Prøve igjen

Spektrum

3 På lager

Informasjon
Produsent

4S 2200mAh - 30C - Spektrum Smart Lipo Batteri iC3 (SPMX22004S30)

Du trenger aldri å angi ladeinnstillinger for et Spektrum Smart-batteri før du vil. Når et Spektrum Smart LiPo-batteri er koblet til en Spektrum Smart-lader, kan unike parametere og tilstanden til Smart LiPo-batteriet lastes opp fra Smart Memory-mikrochip integrert i batteriet. Gjennom laderen kan du se og stille inn preferanser, for eksempel lade minner, slik at alt du trenger å gjøre for å lade pakken hver gang er å trykke på startknappen på laderen. Smart teknologi tar seg av resten. Hvert Smart LiPo-batteri er fabrikkmontert med neste generasjons IC3 ™ eller IC5 ™ batterikontakt som er praktisk og kompatibel med eldre EC3 ™ og EC5 ™ kontakter. Du kan bruke Smart Batteriene med eldre systemer, og andre produkter som krever iC3/iC5 (EC3/EC5), men bare når du er koblet til en Spektrum Smart-enhet, blir alle fordelene med Smart-teknologi åpenbare. Du kan også lade dette batteriet med en konvensjonell universal Computerlader med balanseringsprogram.

Capacity: 2200mAh
Voltage: 14,4V
Max Continuous Discharge:30C/66A
Max Burst Discharge: 60C/132A
Weight:: 230 g
Dimensions: 110x35x30 mm
Balance Plug: JST-XH
Discharge Plug: IC3
Charge Rate: 1-3C Recommended, 3C Max
SoftCase

Sikkerhetsinstrukser for Lithium Ion/Polymer (rc-shop.no)

Key Features

Spektrum Smart Technology Makes Charging and Maintaining Batteries Easy
Integrated Microchip Stores Unique Parameters for Each Battery
New IC3 and IC5 Connectors are Compatible with EC3 and EC5
Save Time and Hassle, while Improving Battery Life
Smart Discharge Allows Batteries to Automatically Discharge to a Safe Voltage

Feature Overview

You’ll never have to set charge preferences for a Spektrum Smart battery until you want to. When a Spektrum Smart LiPo battery is connected to a Spektrum Smart charger, unique parameters and health of that Smart LiPo battery upload from the Smart memory microchip integrated into the battery. Through the charger, you can view and set preferences, such as charge rates, so that all you have to do to charge the pack every time is press the charger “Start” button. Smart technology takes care of the rest.

Every Smart LiPo battery is factory assembled with the next-generation IC3™ or IC5™ output connector that’s conveniently compatible with older devices equipped with robust EC3™ and EC5™ connectors. You can use Smart Batteries with older systems, but only when connected to a Spektrum Smart device will all the benefits of Smart technology become obvious.

Spektrum Smart LiPo Batteries Store Unique Data, such as:

Battery Brand
Battery Type
Battery Capacity
Battery C Rating
Individual Cell Voltage
Battery Temperature
Charge/Discharge Cycles

Spektrum Smart LiPo batteries also maintain an error log including the number of over-heat, over-discharge and over-charge incidents which can be helpful data in assuring that the battery you’ve chosen is right for the application. A Smart Battery uploads its charge parameters to a Spektrum Smart Charger automatically making charging as simple as pressing the “Start” button. The charge rate of every Smart Battery is customizable, allowing you to take full advantage of packs with faster charge ratings.

Smart Battery Technology

When connected to a Spektrum Smart charger, unique parameters and health of your Smart LiPo battery upload from the Smart memory microchip integrated into the battery. Through the charger, you can set and record preferred settings, such as charge rates and self-discharge options, so that all you have to do to charge the pack is press the “start” button. Smart technology will take care of the rest. Every Smart LiPo battery is factory assembled with the next-generation IC3™ and IC5™ output connector that utilizes a data transfer wire to relay saved information to your Smart Chargers.

Smart Battery Technology

Data Rich

An integrated microchip allows each Smart Battery to save vital information such as battery brand, chemistry, cell count, capacity, number of charging cycles, number of discharges, C rating, battery temperature, and internal resistance. Additionally, each battery will save a log of unhealthy events such as over-charge, over-discharge, and over-temperature. This allows you to make the most informed decision about each battery when you are getting your gear ready for a day at the field or the track.

Data Rich

Simple and Quick

Preset charge, discharge, and storage parameters are automatically relayed to a Spektrum Smart Charger making charging as simple as pressing the “start” button. Charge rate of individual batteries can be user customized allowing you to take full advantage of packs with faster charge ratings. The integrated microchip on each battery will remember the last charging rate you set, so the next time you plug it in, these settings will automatically populate so all you have to do is press “Start.”

Simple and Quick

New IC3 & IC5 Connectors

The innovative Smart connection is made possible by an installed microchip on every battery, feeding the unique information through a data cable to the new IC3 and IC5 connectors. The IC series of connectors are designed from the ground up to provide a more solid connection, higher heat resistance, and effortless installation. For those using the popular EC3 and EC5 connectors, there’s no need to worry. The IC connector series is entirely backwards compatible with existing connectors so you can use Smart Batteries with older systems, but only when connected to a Spektrum Smart device are all the benefits of Smart technology obvious.

New IC3 & IC5 Connectors

Smart Discharge

LiPo batteries with Spektrum Smart™ technology practically take care of themselves. When programmed with a Spektrum Smart Charger, Smart Batteries will automatically discharge to your predetermined storage voltage when they are left to rest for a time period you choose, between 12 and 240 hours. This feature will help to extend the life of your Smart Batteries by preventing your batteries from sitting fully charged for an extended period of time, which can damage the chemical integrity of Lithium Polymer cells. This unique feature results in longer battery life expectancy and better performance over the life of the pack.

Smart Discharge

Product Specifications

Specs

Battery Capacity	2000-2999mAh
Battery Voltage	14.8V
Application	Aircraft
Product Height	1.2 in (30mm)
Product Length	4.3 in(110mm)
Product Weight	0.51 lbs. (230g)
Product Width	1.3 in (34mm)
Smart Technology	Smart Battery
Capacity	2200 mAh
Connector Type	IC3
Maximum Continuous Discharge Rate	30C
Hard Case	No
Number of Cells	4

https://www.horizonhobby.de/en_DE/product/14.8v-2200mah-4s-30c-smart-lipo-battery-ic3/SPMX22004S30.html
